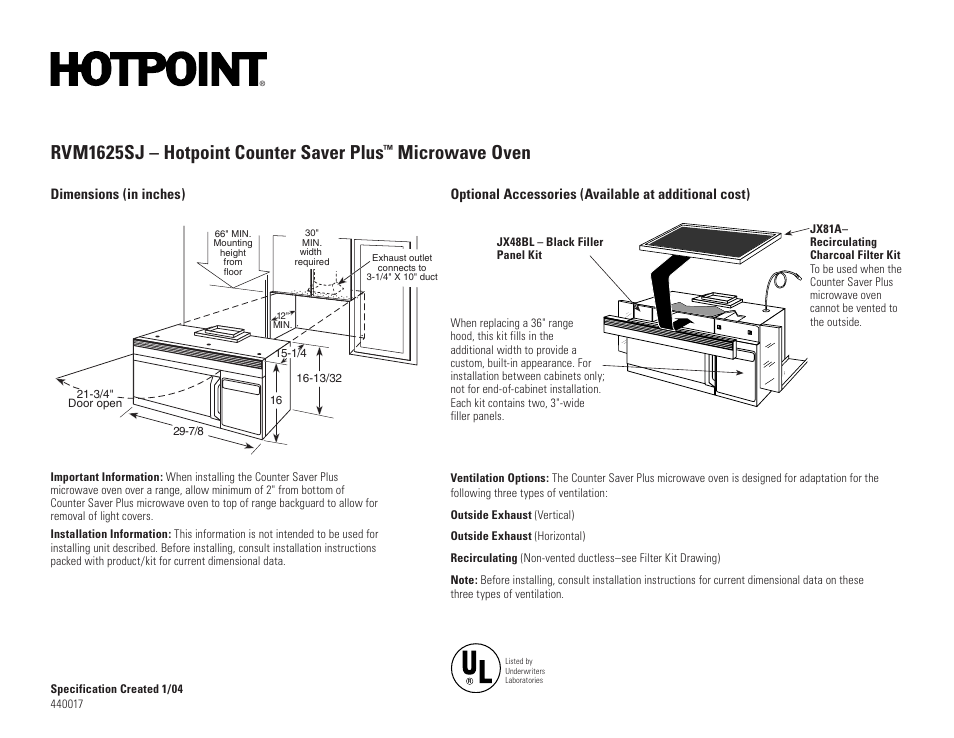

RVM1625SJ – Hotpoint Counter Saver Plus
™
Microwave Oven
Specification Created 1/04
440017
R
Listed by
Underwriters
Laboratories
Dimensions (in inches)
21-3/4'
Door open
16-13/32
66' MIN.
Mounting
height
from
floor
30'
MIN.
width
required
12'
MIN.
Exhaust outlet
connects to
3-1/4' X 10' duct
15-1/4
16
29-7/8
Important Information: When installing the Counter Saver Plus
microwave oven over a range, allow minimum of 2' from bottom of
Counter Saver Plus microwave oven to top of range backguard to allow for
removal of light covers.
Installation Information: This information is not intended to be used for
installing unit described. Before installing, consult installation instructions
packed with product/kit for current dimensional data.
When replacing a 36' range
hood, this kit fills in the
additional width to provide a
custom, built-in appearance. For
installation between cabinets only;
not for end-of-cabinet installation.
Hotpoint Over Counter Microwave Model Rvm1625sj01 User Manual Guide
Each kit contains two, 3'-wide
filler panels.
JX81A–
Recirculating
Charcoal Filter Kit
To be used when the
Counter Saver Plus
microwave oven
cannot be vented to
the outside.
Optional Accessories (Available at additional cost)
JX48BL – Black Filler
Panel Kit
Ventilation Options: The Counter Saver Plus microwave oven is designed for adaptation for the
Hotpoint Over Counter Microwave Model Rvm1625sj01 User Manual Instructions
following three types of ventilation:
Outside Exhaust (Vertical)
Outside Exhaust (Horizontal)
Recirculating (Non-vented ductless–see Filter Kit Drawing)
Note: Before installing, consult installation instructions for current dimensional data on these
three types of ventilation.
